-one-piece forming process, precise plasticty, improve the mechanical performance and
structural strength of the lamp, large heat dissipation area, good thermal conductivity

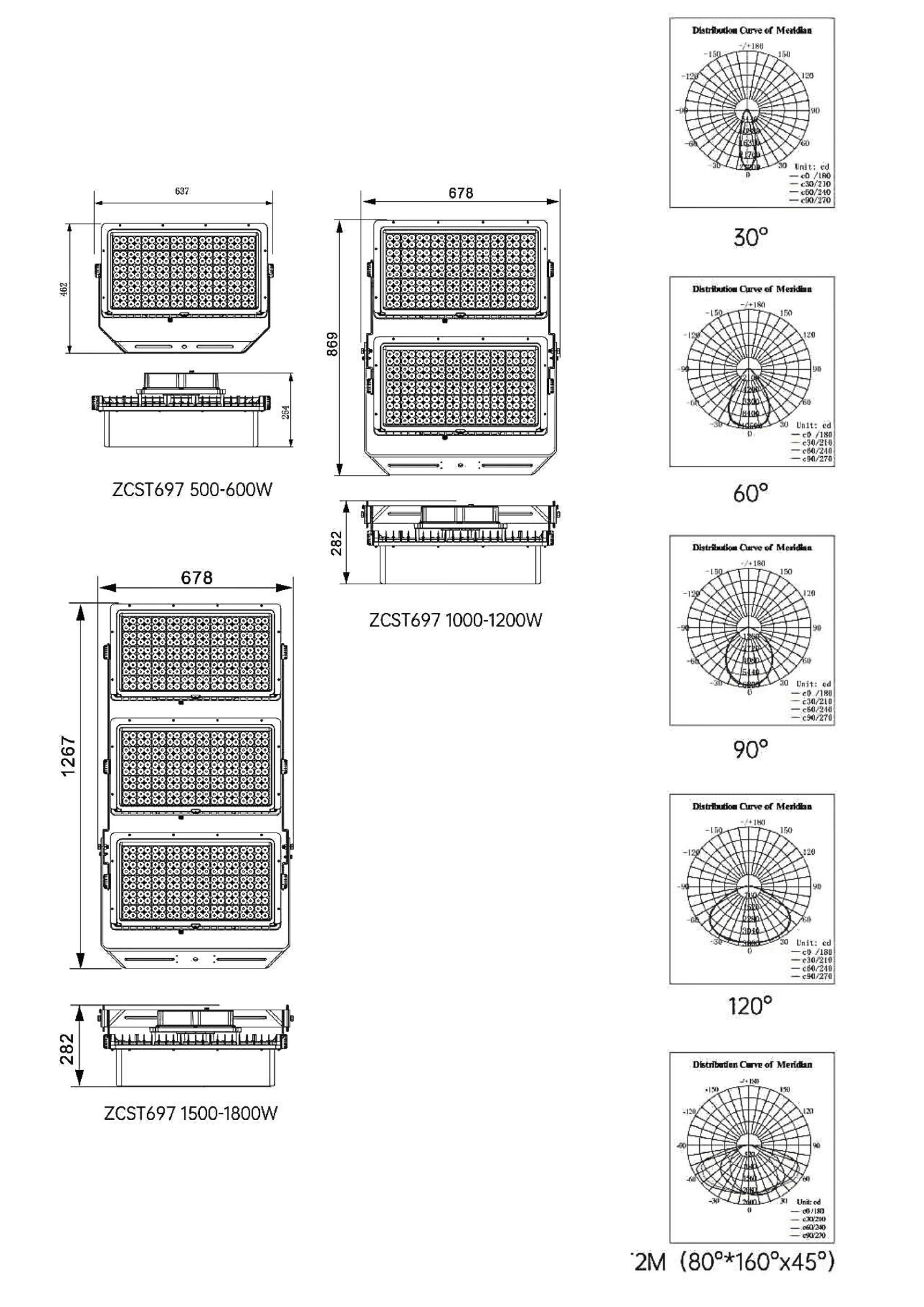

-multiple beam angel: 30° ,60° ,90° ,120°, T2M (80*160x45°) meet the requirements of
professional light distribution

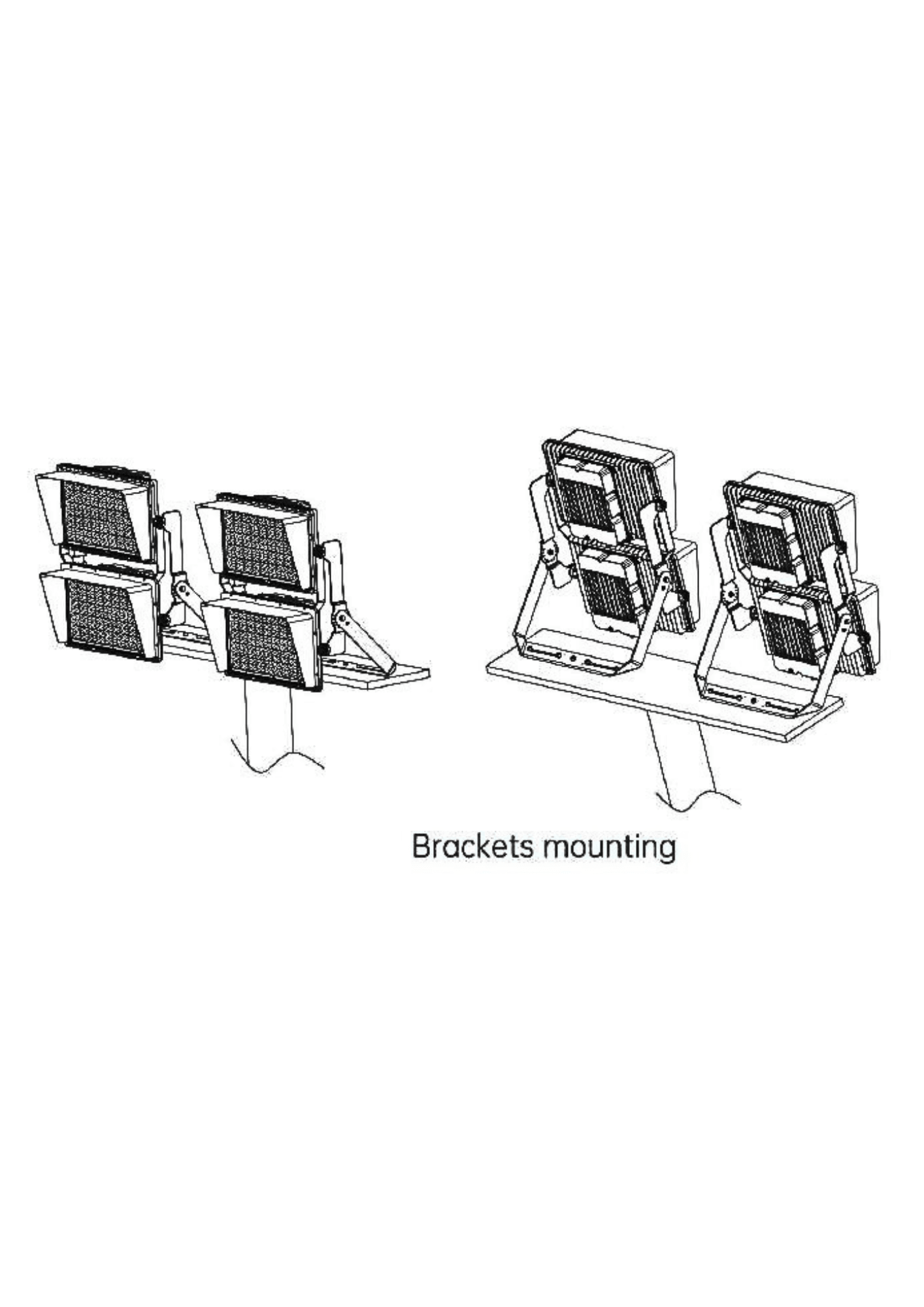

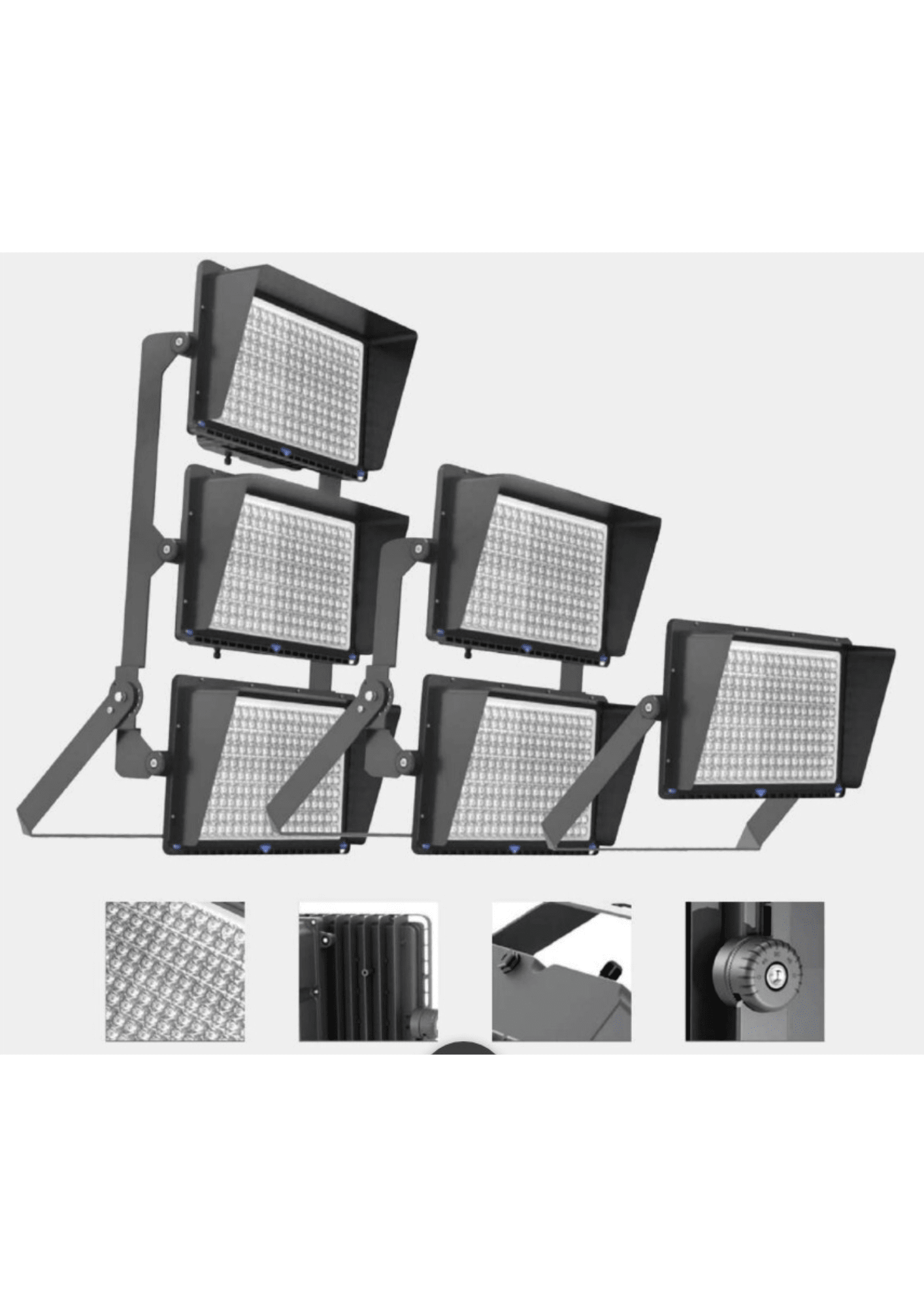

-can be used by multi-module splicing

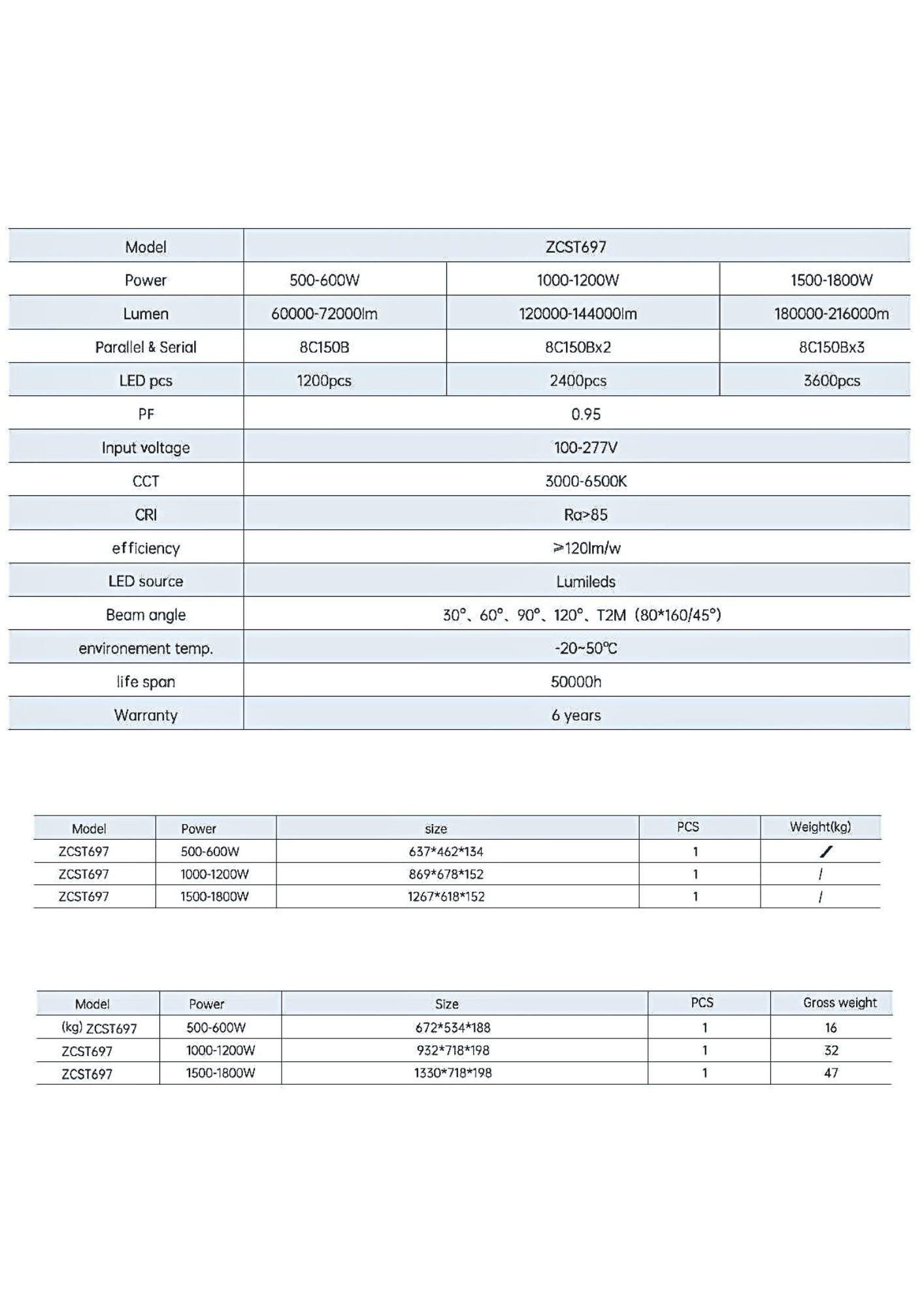

technical parameters

- Energy effeciency : compared with traditional lighting, LED
  consumes up to 85% of energy.
- Long life : Rated life is morethan 50.000 Hours, incandescent bulb
  is 50 times, fluorescent lamp is 8 times.
- High light efficiency : the special PC lens enhances the illumination
  area and the illumination is uniform
- Double cavity structure : the independent cavity of the light source,
  driverand wiring ensures that the LED heat will not affect the driver
  and wiring components.

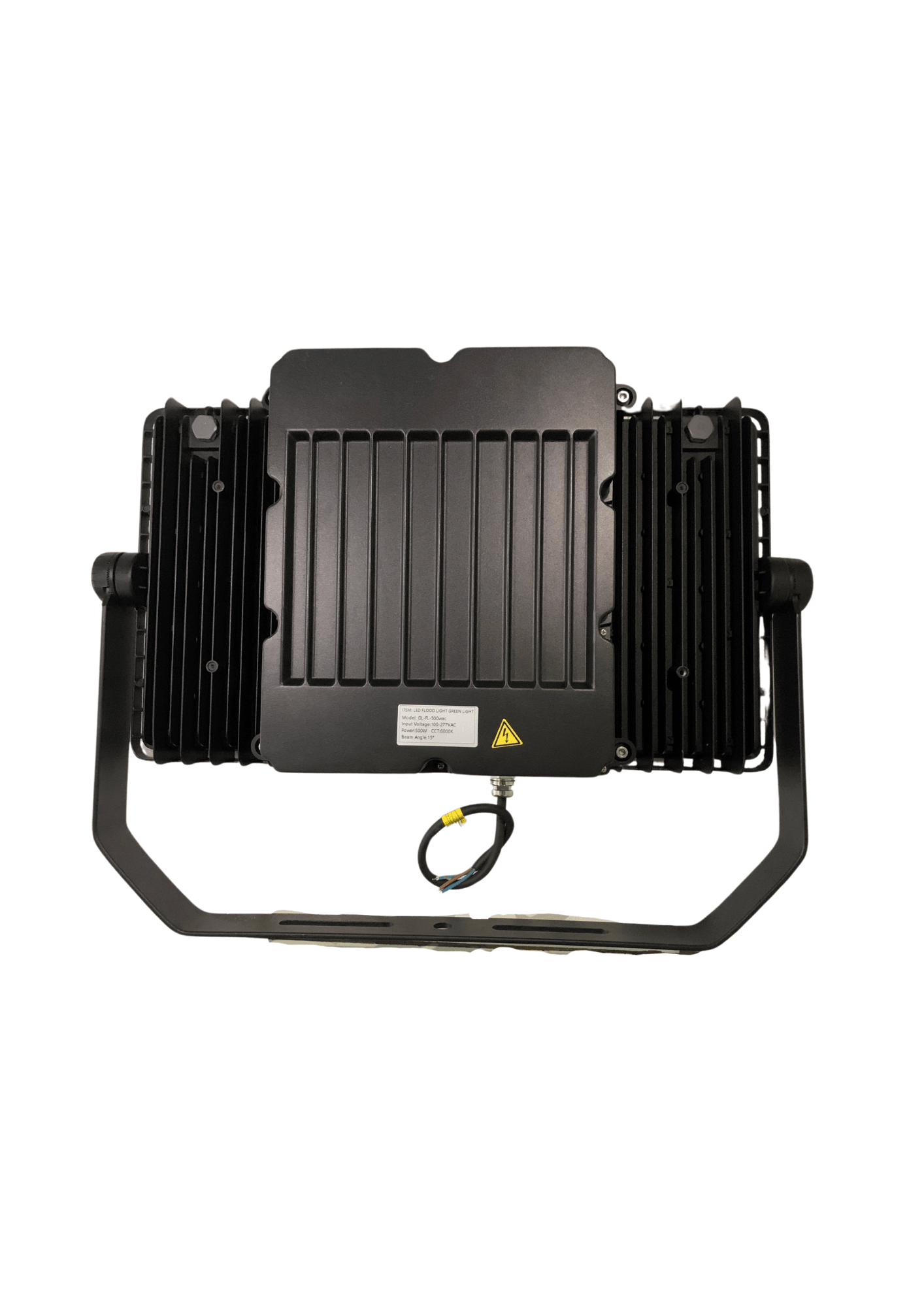

- optimized heat sink : the aluminum housing with an air shunt
  structure removes heat from the LED and driver to ensure a longer
  service life, wide voltage range : AC220V.
- Type can work in the range of 85-25V.
- Multiple protection : constant current with short-circuit and over
  voltage protection.
- Good electromagnetic and anti-interface ability.
- SMT technology : surface mount technology keeps the working
  temperature of the LED chip low.

Materials

Body : 1060 aluminum strip, aluminum content reaches 99,6%.Lens : optical grade nylon material Polycarbonate 9 ( PC ). Polycarbonate b. Plastic material gasket: Acid/hydrocarbon resistant silicone rubber gasket with temperature of -20%.Protection : electropolished stainless steel. can also provide requests without protection.Bolts and Screw : Stainless Steel

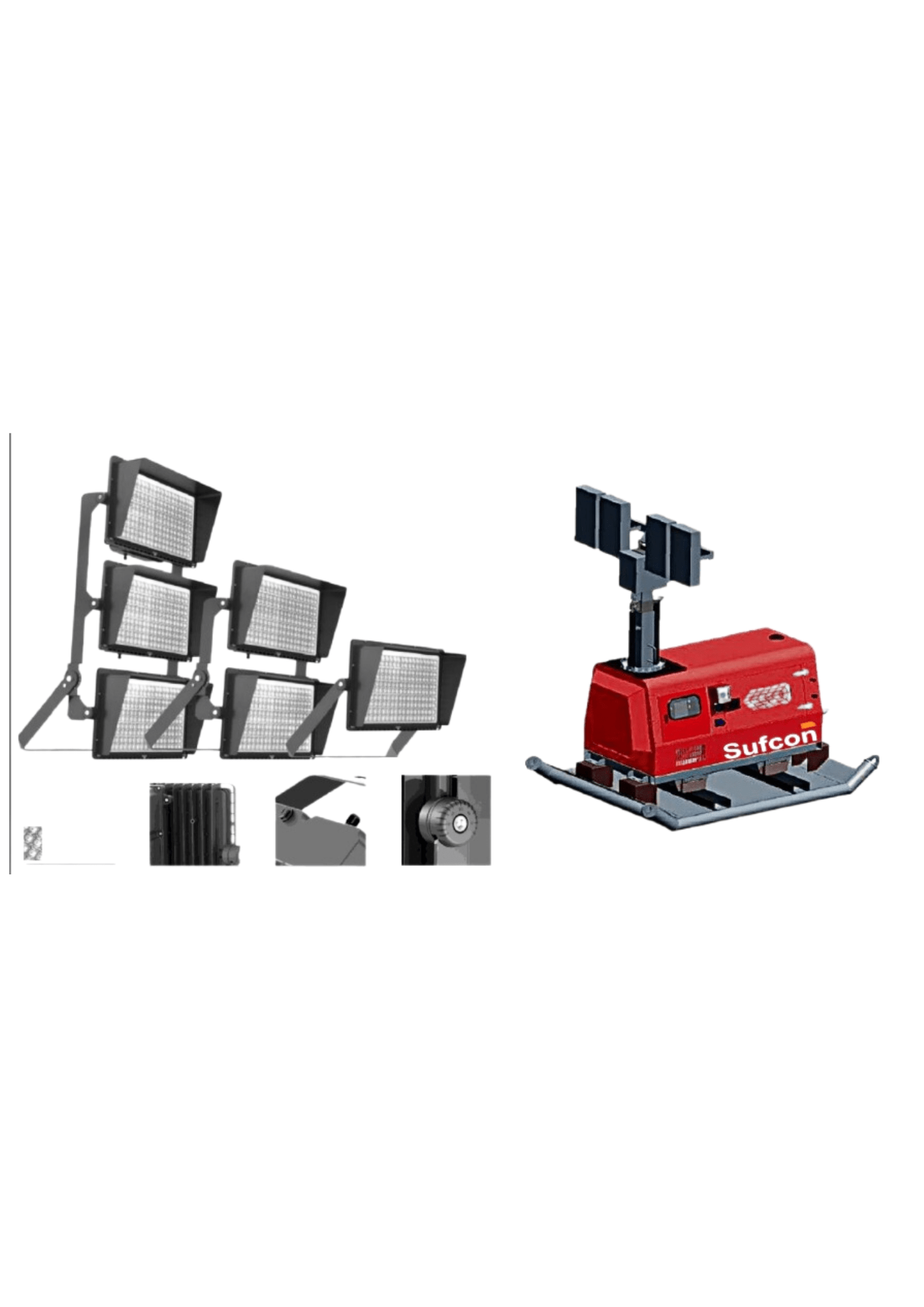

LIGHTING TOWER LED FLOOD LIGHT GREEN LIGHT

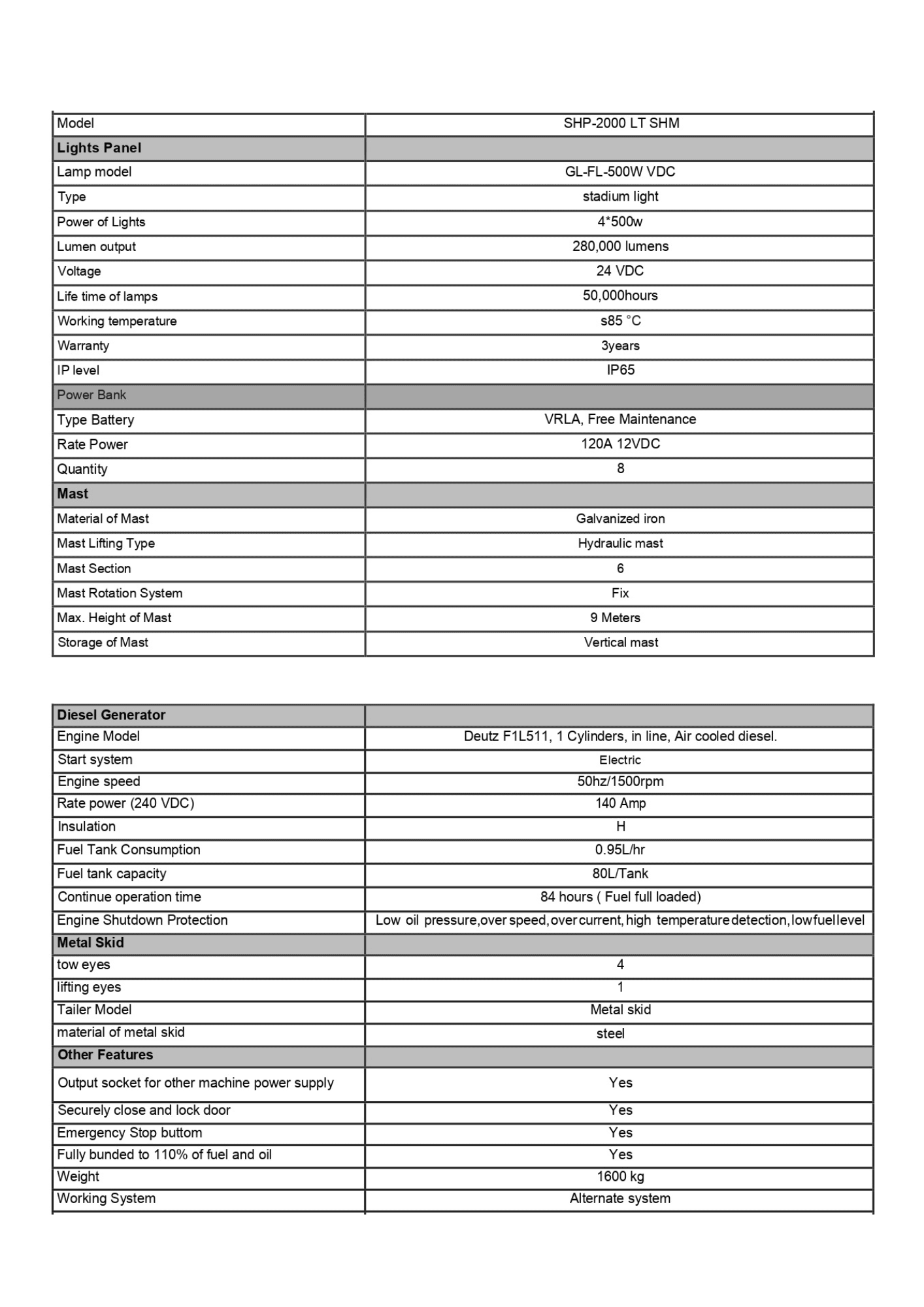

technical parameters
